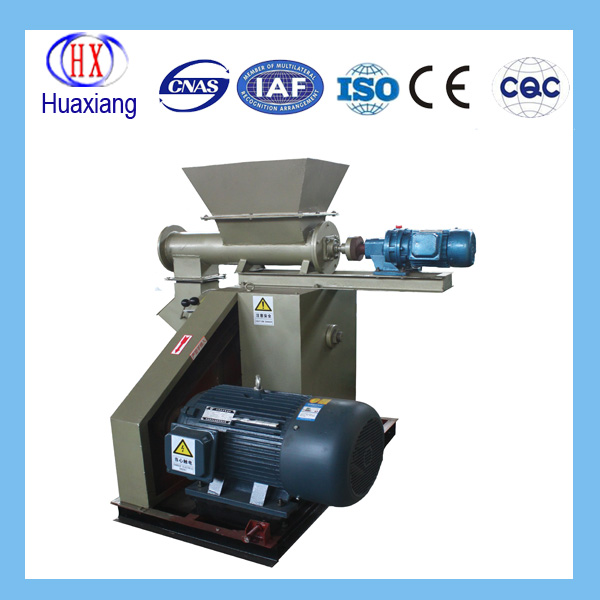

 Product Name:400-600kg/h Poultry Feed Pellet Machine     Views:492
 Product Type:HKJ200 Ring Die Pellet Machine

 Introduction:


HKJ series Pellet Machine

Brief:

1.Specially for making feed pellets.

2.High Capacity.

3.Reasonable Design.

4.CE Certification.

Production Information:

It is used for pellet manufacture of materials such as livestock and poultry feed, aquatic feed, and grass powder, etc.

Working Principle:

The raw material is putted into the machine through feeding, under the function of centrifugal force, the raw material will be throw to the inner wall of die, form a ring shape material uniformly, layer and layer, the ring shape material will taken into the touching area of die and roller, after the forced extruding between die and roller, the ring shape material will be formed a columned pellets, and then, will be out from the hole within the die, the cutting knife who fixed in the chest will cut the pellets according clients adjusting.

Technical Data:

Model

Power(KW)

Capacity(T/h)

Weight(KG)

Size(mm)

HKJ200

15

0.4-0.6

430

1250*1350*1320

HKJ250

22

0.8-1

750

1300*1450*2000

HKJ300

30

1.5-2

925

1600*1550*970

HKJ320

37

2-3

1470

2070*1330*2200

HKJ350

55

3-5

2030

2280*1200*2300

HKJ420

90

5-8

3200

2350*1300*2450
